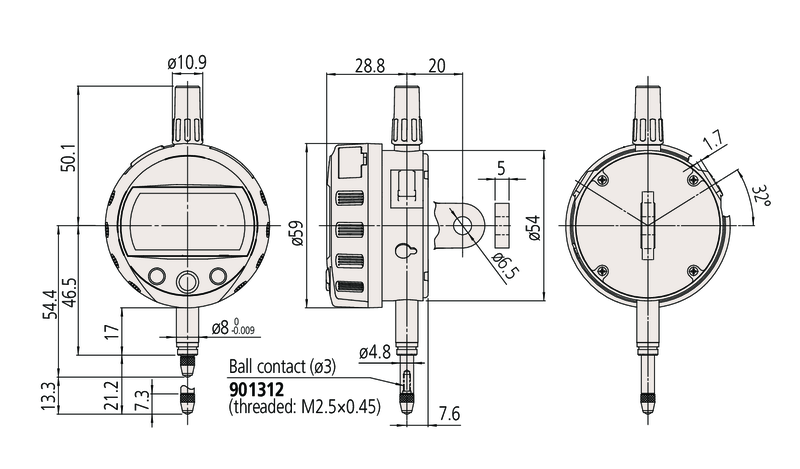

Digimatic Dial Gauge

Digimatic Dial Gauge

Product Details:

  • Usage For Laboratory Use
  • Color Grey
  • Width 10-50 Millimeter (mm)
  • Product Type Digimatic Dial Gauge
  • Material Digimatic Dial Gauge
  • Supply Ability : 1 Unit Per Day
X

Price And Quantity

  • 6140 INR
  • 1 Unit

Product Specifications

  • Digimatic Dial Gauge
  • 10-50 Millimeter (mm)
  • Digimatic Dial Gauge
  • For Laboratory Use
  • Grey

Trade Information

  • Cash in Advance (CID), Cash Advance (CA)
  • 1 Unit Per Day
  • 1-7 Week
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

Range:

12.7 mm

Digital step:

0,001 mm

Maximum Permissible Error E MPE:

0,003 mm

H MPE (Hysteresis):

0,002 mm

R MPE (Repeatability):

0,002 mm

Type:

EN ISO Standard

Measuring force:

≤ 1,5 N

Protection:

IP42

Mass:

170 g

Display:

LCD, character height 11 mm rotatable 330°

Alarm:

Low voltage, counting value composition error, overflow error, tolerance limit setting error

Stem Ø:

8 mm

Contact point:

Carbide ball, thread M 2.5 x 0.45 mm

Battery life:

approx. 7000 hours

Power supply:

1 battery SR-44

DATA/HOLD:

Yes

Data output:

Yes

ON/OFF:

Yes

ZERO/ABS:

Yes

PRESET:

Yes

Selectable resolution:

Yes

GO/±NG judgement:

Yes

Calculation function (with formula):

Yes

Counting direction switchable:

Yes

Digital/Analog:

Digital

Inch-Metric:

Metric

Hysteresis:

0,002 mm

Max. response speed:

Unlimited

Delivered:

Including 1 battery
