Kristeel Shinwa

WIRE & SHEET METAL GAUGE

The Wire Gauge can measure from 1 to 36 and hence is most versatile in application Made of Hardened and Tempered Steel from Japan, which ensures no wear and tear of the gauge during measurements This gauge is a boon for Wire manufactures, Plate manufacturers, Fabricators, Traders and Jewellers. The preciseness of the dimensions has made wire gauge a very popular Measuring Tool among Jewellers

TWIST DRILL GAUGE

Acute angle of 118 Measure up to 50 mm 2" diameter. Precision measuring quality

DIGITAL HEIGHT GAUGE

Measuring range :- 0 to 600 mm Least Count 0.01mm/0.0005 Stainless steel material Large base for rigidity A precise instrument for measuring & marking on the workpiece. Comes with a Calibration certificate. Large LCD screen. Carbide tipped scriber for marking. Inch / Metric Conversion table.

Sheave Gauge

This Gauge made in stainless steel, extremely useful tool for measuring wire rope & sheave wear, sheave maintenance by measuring sheave contour wear at the root, measuring the amount of wear at the groove wall & measuring the diameter of the wire rope

Flexible Metric Steel Rules

UNIVERSAL BEVEL PROTECTOR

Can be attached to height gauge Comes with blade length of 150 / 300mm acute attachment. Kristeel universal bevel protractor 6" and 12" blade. High precision angle gauge for accurate angle mesurement. Can be attached to height gauge. Comes with blade length of 150/300 mm with acute attachment.

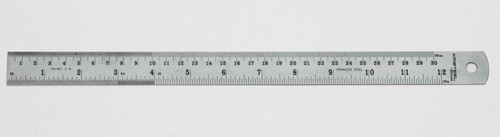

FOOT RULE

Range:- 0 to 150 mm (150 x 15 x 0.5 mm) FRONT SIDE: Top edge 1/2 mm, mm. Bottom edge 1/16ths, 1/32nds, 1/64ths. REVERSE SIDE: Conversion Table inches to mm

POCKET CLIP RULE

Measuring range 0-150 mm Product width - 6 mm Can be used to measure Depth Stainless Steel Polish finish

DEPTH GAUGE

A handy Metric or English convertable depth gauge. The set consist of one head and two stainless steel rulers; one metric, the other English. Either one can be easily slipped and locked in to the slot. The rules can be used separately, If desired. Metric graduation in millimetres; English in 64ths. Each set individually packed in PVC covers.

VERNIER CALIPER

Measuring range of 0 to 150 mm with Calibration certificate. Polished finish with chrome finish scales. Can be used to measure OD,ID, Depth & Steps. Laser engraved black scale graduations & text. Stainless Steel material

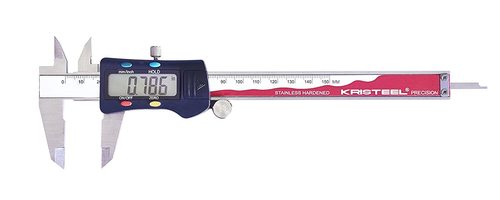

DIGIMATIC VERNIER CALIPER

Measuring range of 0 to 200 mm with Calibration certificate. Can be used to measure OD,ID, Depth & Steps. Laser engraved black scale graduations & text. Fully digital Display Accurate measuring tools

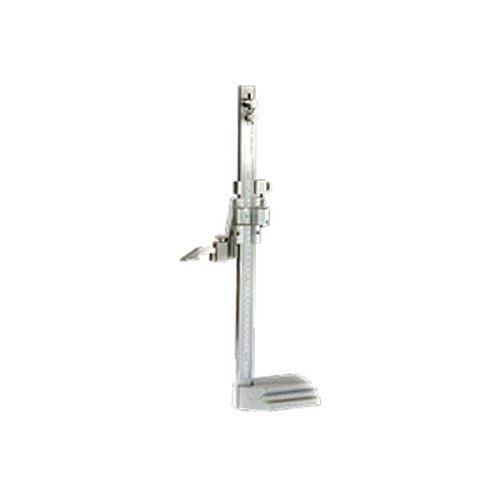

HEIGHT GAUGE

A precise instrument for measuring & marking on work piece in tool room & Q. C. department. The Height gauge comes to you with rich chrome plate matt finish rule and is made of high quality stainless steel available in size of 300 mm 450 mm and 600 mm, with least count of 0.02 mm. This world class instrument comes to you in a handsome and durable packing.

SCREW CUTTING GAUGE

Combined threading tool gauge for ACME 14 and angular threads 47 , 55, 60.

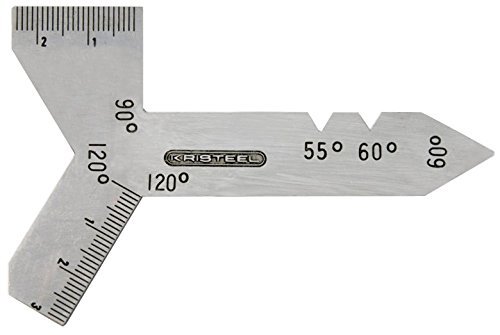

UNIVERSAL GAUGE

Combines twist drill grinding gauge Centre gauge Hexagon and right angle 55, 60 Precision quality

BORE GAUGE

Kristeel taper gauge/bore gauge - acf 1-15 mm (chrome finish)-pack of 3. For the measuring of cylindrical bores. Flat and not hardened. Chrome finish.

RADIUS GAUGE

Range of 1.0-7.0 mm. 17 Blades measuring options. Concave and convex blades.

TAPER GAUGE

This Tool Steel Taper Gauge is used to determine the dimensions of slit or gap. The Taper Gauge is inserted into the slit or gap to be measured and the point when gauge stops give the dimensions of slit or gap. Range:- 0.4 to 4.0mm & 0.01 to 0.15 inch Finish:- Polished

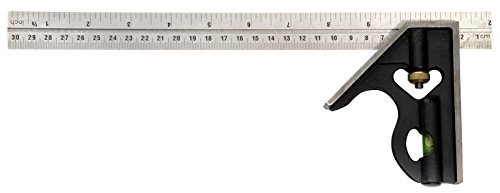

COMBINATION TRY & METER SQUARE

A spirit level is incorporated in the die-cast stock. Metric in mm. and English in 1/16 ths. 300 mm./12 inch length only. Polish Finish Die-cast stock is finished with a high quality enamel.

CENTRE SQUARE

Made of steel Graduations is both british and metric system Finish polish Kristeel centre square. Made of steel. Graduations is both british and metric system. Finish polish. Welding gauges. Angle Gauges. Made of steel graduations is both british and metric system, finish polish

Circumference And Diameter Gauge

Kristeel circumference gauge (60-950 mm)/dia (20 mm - 300 mm). Suitable for measuring circumference and diameters of all round bodies. Graduation in mm, reading +/- 0.1 mm. Accurate quality.

ENGINEER'S SQUARE

Kristeel engineers square (8 inch). This square is made out of steel stock and hardened blade. The blade is fix to the stock by taper pins. All faces are precision ground. It is durable and long-lasting.

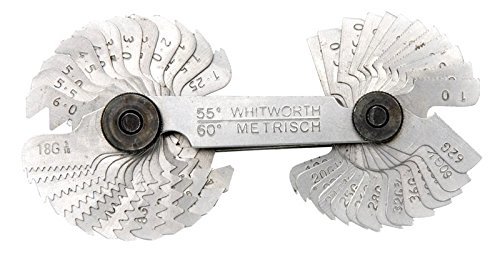

SCREW PITCH GAUGE

Kristeel screw pitch gauge(pack 2). This product is completely manufactured in stainless steel material. Narrow leaf design allows checking both external and internal threads even in small holes not accessible with wide leaf type guages. Range :- 0.25 to 6mm - metric 60o 4 to 62 tpi - whitworth 55o no. Of leaves :- 52.

ENGINEERS'S KIT

The precision kit includes handsomely packed 8 precision gauges namely - 2pc combination try and meter square, bore gauge, universal gauge, degree protractor-cum depth gauge, screw cutting gauge, radius gauge, round wire gauge and caliper gauge. The kit serves every purpose of tool room/workshop operations, right from measuring/marking thickness, angles, depth, radius, length, bore, level, diameters etc. The precision kit includes handsomely packed 8 precision gauges. Namely - 2pc combination try and meter square, bore gauge, universal gauge, degree protractor-cum depth gauge, screw cutting gauge, radius gauge, round wire gauge and caliper gauge. The kit serves every purpose of tool room/workshop operations, right from measuring/marking thickness, angles, depth, radius, length, bore, level, diameters etc.

WELD GAUGE

The tool combines a bore gauge, angle gauge, depth gauge and weld height gauge. The tool is made in stainless steel with polish finish.

VWAC GAUGE

This rugged gauge is fabricated in Stainless steel, with measuring range 0-6 mm. The pointer is easy to set & lock screw holds the gauge in position for later reference. All four required measurements are made with a single gauge. It is useful for welding, maintenance & quality department. To check butt weld crown or reinforcement height Range: 0-6mm with least count of 0.5mm To check undercut depth near welding area. Range: 0-6mm with least count of 0.5mm

POCKET TYPE FILLET WELD GAUGE

Kristeel pocket type fillet weld gauge (2 leaves). This rugged gauge, fabricated in stainless steel, is made of sets of 2 blades with permanent markings. Gauge leaf can check welding actual throat size and fillet weld leg sizes. It is useful for welding, maintenance and quality department. Both the leaves are assembled in handy chain and packed in pvc pouch.

WELD CUM RADIUS GAUGE SET

This stainless steel Gauge is made as a set of 12 leaves sizes from 3mm to 12mm. Each leaf can check welding throat size & concave radius profiles also.

PIPE PIT GAUGE

Kristeel pipe pit gauge. This small pocket sized stainless steel gauge is designed to identify the condition of pipe like depth of pit, pipe thickness etc. Gauge includes 110mm long scale in metric and inch. Conversion table available on back side and formulas on top.

ANGLE GAUGE

Kristeel angle gauge (1 degree - 45 degree). This angle gauge having 20 nos levels made in stainless steel hardened and tempered. This gauge is useful for measuring angles 1- 45o can be use for checking shaft dove - tail angle. This gauge is useful in tool room. Die makers, mould makers and woodworking industry.

60 - 120 COUNTERSINK ANGLE GAUGE

Kristeel 60-120 degree countersink angle gauge. The gauge is made of hardened and tempered stainless steel material 1 mm thick. These high accurate angles are useful to check counter holes angle. Each guage is packed in pvc pouch. Range: 60o, 82o, 90o, 100o, 110o, 120o accuracy is within 15 minutes.

TYRE DEPTH GAUGE

Kristeel tyre depth gauge (0-50mm) pack of 2. This new model is made of hardened and tempered stainless steel material in polish finish. It measures thread depth of tyres. The plastic sliding knob holds the vernier scale at any point. It is enough tight to avoid self sliding. Each gauge is packed in pvc pouch.

RAKE ANGLE GAUGE

Kristeel rake angle gauge. Rake angel gauge is used to check up the rake angle for broaches. Also to set the shearing machine blade angle, it is used by all tool room operators , fabricators and to some extent by the welders for checking angles for plates having butt weld. Accurate quality.

Degree Set Square

Kristeel 45-45 - 90 degree set square. They have precision ground angles for convenient set-ups in tooling, production and inspection, holes can also be provided for easy mounting. Used in work shops. Polish finish

FEELER GAUGE

Kristeel 4 feeler gauge- 13 blades pack of 2. This gauge is used to check flatness and gap between mating parts. Range : 0.001 to 0.025 (english/metric model) (27 blades). Blade length - 4. Built for performance.

Folding Rule With Angle

This 600mm folding rule is made of hardened & tempered stainless steel material and incorporates a scale from 0 to 120 in increments of .

29* SCREW THREAD TOOL GAUGE

This Hard Chrome Plated Guage is used to measure the ACME Threads for setting of cutting tool.

GEAR TOOTH PITCH GAUGE

This gauge is made of hardened and tempered stainless steel material 0.5 mm thickness. This is a very handy tool used to measure the gear diametrical pitch and metric module pitch for 14.5o and 20o pressure angle. This gauge is duly fine edge profiled, numbered pitch sizes are mentioned on each blade. It is very useful gauge for all gear manufacturers for inspection purpose. It is packed in a plastic box with gear data sheet (dp, cp, tooth thickness data) provided for instant reference. It is very useful gauge for all gear manufacturers for inspection purpose. It is packed in a plastic box with gear data sheet (dp, cp, tooth thickness data) provided for instant reference. This is a very handy tool used to measure the gear diametrical pitch and metric module pitch for 14.5o and 20o pressure angle. This gauge is duly fine edge profiled, numbered pitch sizes are mentioned on each blade.

Hook Rule Cum Drill Point Gauge Assembly

This chrome plated 6" ruler is made of 1 mm thick hardened and tempered stainless steel material and provided with hook rule attachment and drill point angle attachment. This scale is useful to check any external outer dimension 0" to 6" like a caliper. It can be separately used as a hook rule and also to check drill point angle of 118. Drill cutting length up to 5" can also be checked. It can be used as a fixed snap gauge for checking outer dimensions. If required hook rule attachment can be removed by loosening the eccentric screw.

PIPE SIZER

Tool that instantly determines the exact size of various types of pipes.

DELUX CNC TOOL SEETING GAUGE WITH ANGLE SCALE

Tool that instantly determines the exact size of various types of pipes.

MULTI USE RULE & GAUGE

Kristeel multi use rule and gauge. Made of long- wearing stainless steel. This gauge is used for five distinct functions. Drill point gauge is used for checking 59 degree angle drill points. Bevel protractor is used for measuring and laying out angles.Centre finder locates centres of shafts or circles. Circle divider(upto nine equal parts)is used for dividing circle into sectors,regular polygon an polygrams. Tap and drill table shows popular tap sizes with correct drill sizes for national form of thread.

Spindle Turner's Gauge

This Hard Chrome Plated Setting gauge is useful in Workshop for Drilling on round bar or pipe exactly at the Center of the work piece

V - Pulley Gauge Set

It is useful for pulley manufacturers, maintainance dept, quality dept, tools rooms etc. The gauge is made of stainless steel in set of 4 sizes. It is used to check the size and type of belt. It can also check pulley groove as well as tools angle and size.

Wet Film Thickness Gauge

The wet film thickness of most organic coatings including paints, resins, lacquers, varnishes, gel coat etc may be measured before curing. It is designed to quickly and easily measure thickness of coatings immediately after they have been applied to substrate. This gauge is also known as comb, mil guage, step gauge and notched gauge. The gauge incorporates a series of notches cut into their sides much like the teeth on a comb.

Chamfer Gauge

Used to check chamfer of any round or rectangular parts. The gauge has 18 leaves duly fine edge profiled, the numbered size on each blade. Range: 0.50, 1.0, 1.25, 1.50, 1.75, 2.0, 2.25, 2.50, 2.75, 3.0, 3.25, 3.50, 3.75, 4.0, 4.25, 4.50, 4.75, 5.0 mm. (18 Blades)

Heavy Duty Degree Protractor

Heavy duty protractor with hollow base.

Degree Protractor

Degree Protractor Cum Depth Gauge

ELEGANT DESIGN ACCURATE GRADUATION POLISHED FINISH

Brass Caliper Gauge

Centre Gauge

Kristeel centre gauge 60 degree (pack of 10). Made of steel. Graduations is both british and metric syste. Centre gauges 55o/60o - model 1507 a/b.

MARKING GAUGE

Marking gauge is used for marking on steel/wooden plates ec. It has a stopper which starts from the zero graduation. It is provided with a knob arrangement which can be locked to precisely check a certain linear measurement. Marking gauge is used for marking on steel/wooden plates ec. It has a stopper which starts from the zero graduation. It is provided with a knob arrangement which can be locked to precisely check a certain linear measurement.

Gonio Meter

Measuring range 4.5", 8" & 10" Polished finish stainless steel material 4.5" , 8" have 180 degree protractor scale half round model . 10" have full round 360 degree protractor scale

Signature Series Rules

Satin chrome antiglare finish. Manufactured from hardened and tempered japanese stainless steel. Permanently marked graduations without enamel paint in graduations. Accuracy to eec - 1 standards, I. E. +/- 0. 2mm at 20oc for 1000 mm rule. Calibration certificate conforming accuracy to eec - I international standard (euro norm). Signature of guarantee. Least count measurement chart. Important formula of statistics with charts. Area and volume charts. Length conversion table. Satin chrome antiglare finish. Manufactured from hardened and tempered japanese stainless steel. Calibration certificate conforming accuracy to eec - I international standard (euro norm).
